Explore Diedrich Roasters

  Name Batch Capacity/ Nominal Capacity (min/max) Maximum Hourly Roast Output Voltage Maximum BTUs/hr (kW) Shipping Weight
DR3-E Electric Roaster 6.6 lbs (3 kg) approx. 26.4lbs (12kg) 240Vac 1PH
DR-3 6.6 lbs (3 kg) approx. 26.4lbs (12kg) 240Vac 1PH actual shipping weight may vary
DR-5 11 lb (5 Kg) approx. 18 Kg/40 lbs 200-240VAC 1 phase actual shipping weight may vary
DR-12 26.4 lb (12 Kg) approx. 42 Kg/92 lbs. 200-240VAC 1 phase actual shipping weight may vary
DR-25 55 lbs (25.Kg) approx. 100 Kg/220 lbs 220v/60Hz or 230v/50Hz actual shipping weight may vary
DR-35 77 lb (35kg) approx. 123 Kg/270 lbs. 200-240V 3 PH & 380-415V 3 PH approx. 2,675 lb; 1,213 Kg plus cooling bin and other components
DR-70 154 lb (70kg) approx. 245.Kg/540 lbs. 200-240V Three Phase 380-480V Three Phase approx. 3,350 lb; 1,520 Kg plus cooling bin and other components
DR-140 308 lb (140kg) approx. 490Kg/1078 lbs. 380-480V Three Phase approx. 5,740 lb; 2,604 kg plus cooling bin and other components
DR-280 617 lb (280kg) approx. 980Kg/2156 lbs. 380-480V Three Phase approx. 7,500 lb; 3,402 kg plus cooling bin and other components

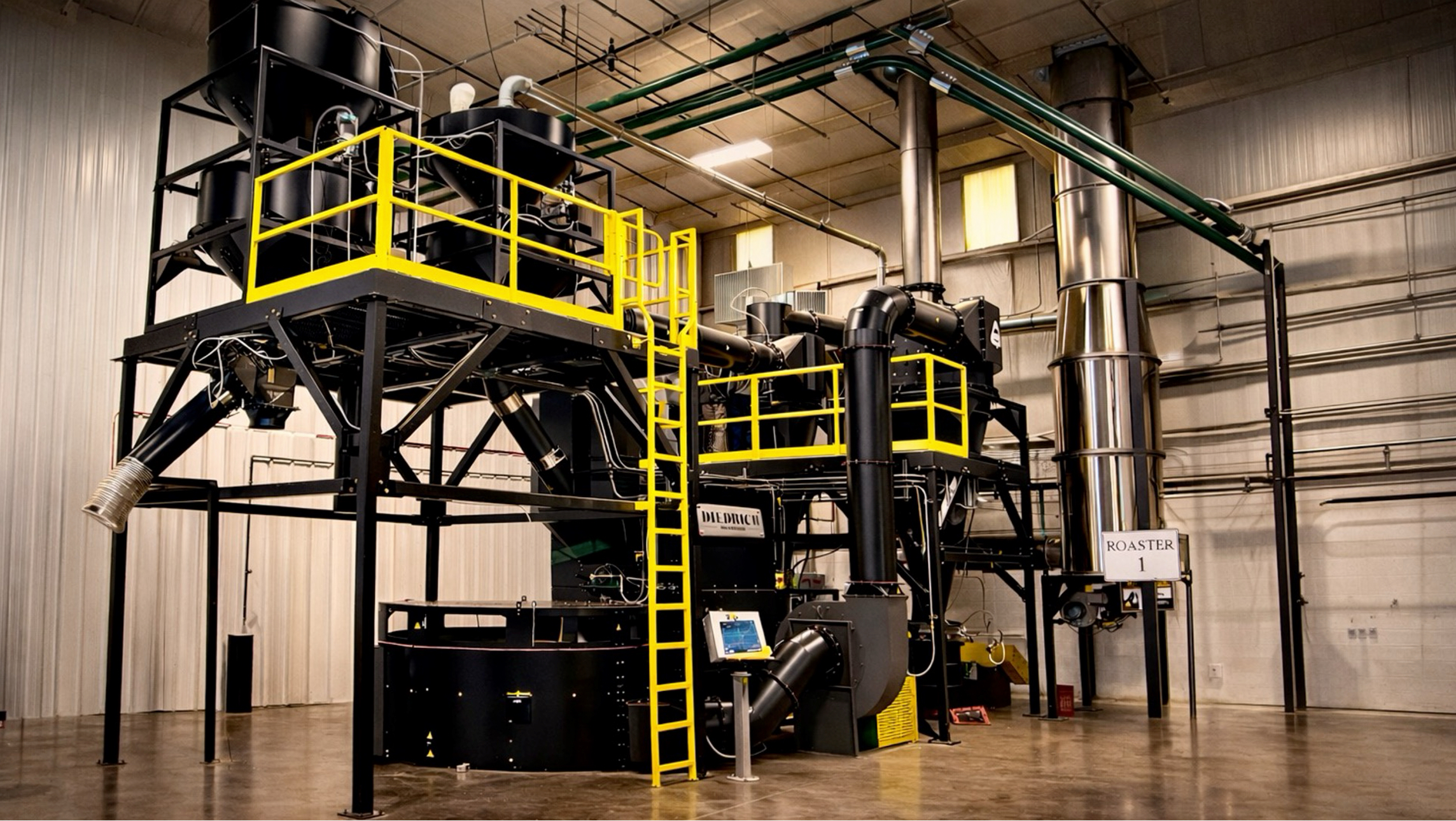

DR360 Approx. 6 Bags 2376 Volts AC for Controls: 110 V 1 PH; Volts AC for Roaster: 480V 3 PH
