Batch size for the DR-25 is approximately 55 lb (25Kg) of green coffee.
Hourly capacity is approximately 100 Kg/220 lbs per hour of green beans. In addition to full batch capacity, our roasters are also designed to roast half batches.
The Diedrich Roaster is designed for consistency and repeatability, ensuring a perfect roast batch after batch.
- Connect tablet or computer directly to your roaster.
- The burner system integrates directly with cropster and artisan for precise roast profile.
- Infrared gas burners allow you to roast with conductive, convective, and radiant heat with total control.
- Manual, data logging, or fully automated roasters are available.
- Collect and save data.
- One-year warranty and 90-day electrical warranty.
The DR-25 is part of the Diedrich IR Specialty Roaster line.
The DR-25 incorporates special features from our CR Commercial Roaster line.
- Variable speed from the HMI for the Roast Air, and Cool Air
- Separately controlled airflow for Roast Air and Cool Air
- Quench in the drum using the automation
- Manual quench in the roast air cyclone
- Prox sensors on the chaff gate that indicate if the gate is open or closed
- Upgraded Automation Platform
- Electrical configuration is 220v/60Hz or 230v/50Hz; Single Phase (not offered in 110v)

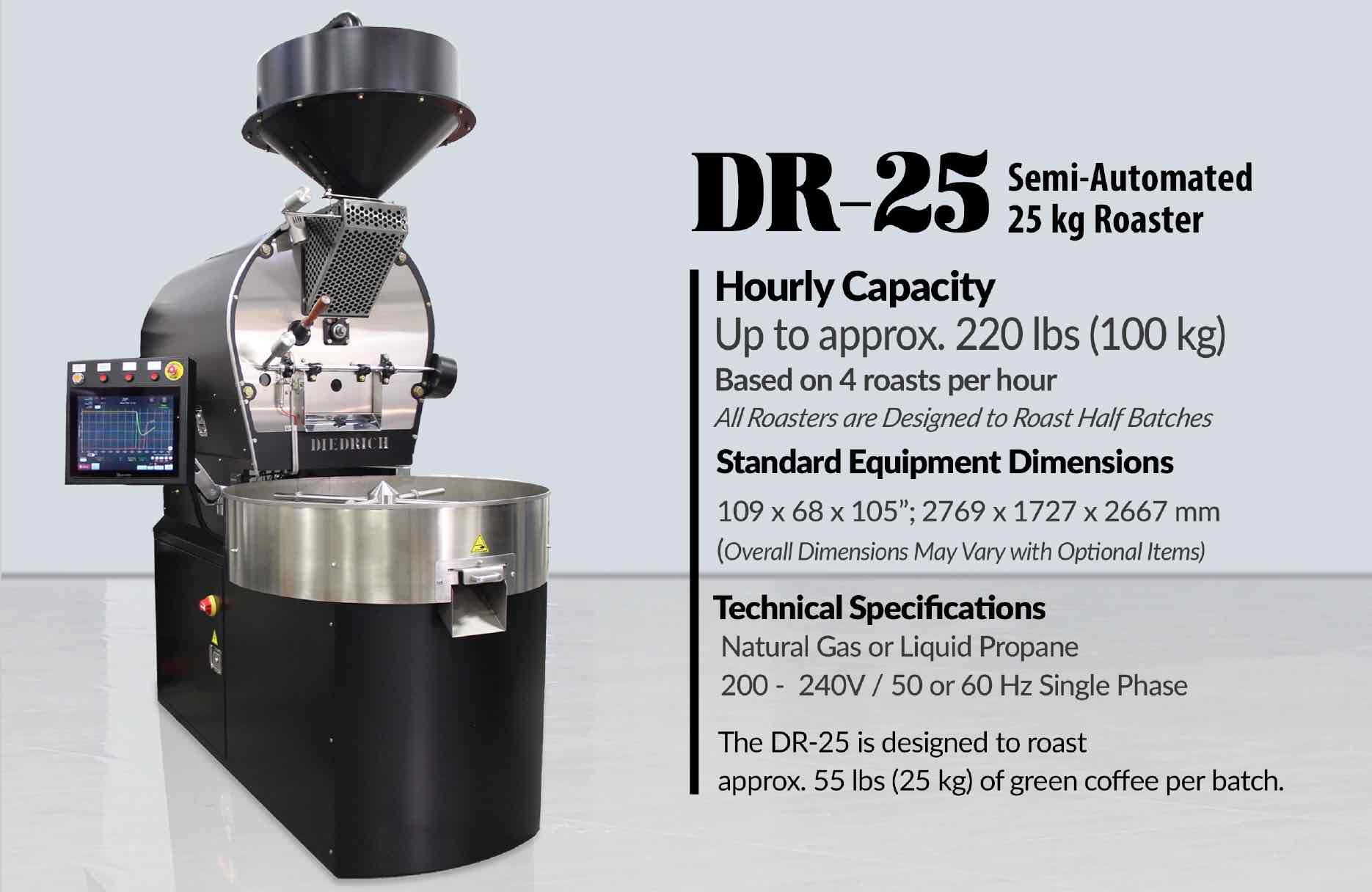

Technical Information:
- Dimensions, Maximum: 9’1” x 5’8” x 8’9”; 2769 x 1727 x 2667 mm
- Volts AC (1-Phase): 220V 1PH
