DR-140

Hourly capacity — Up to 1078 lbs

Batch size for the DR-140 is approximate 140 Kg/308 lbs. In addition to full batch capacity, our roasters are also designed to roast half batches.

  • Roast with control, quality, and consistency.
  • Simplified Controls: 2nd generation roast profile automation continues to advance coffee roasting.
  • Designed for both IR series and CR series, the updated Z 2.5 automation uses industrial-grade hardware, has user-friendly interface and offers operators the ability to precisely fine-tune and control the roast during your roasts with our multi-sensor monitoring feature.
  • Drums are built for true maximum batch size roasting with variable speed control.
  • Drum drive, roaster blower, cooling stirrer arms, and destoner blower are available with variable speed drive.
  • Monitor and save roasting parameters with our roaster batch control system.

Our roaster controls allow the operator to design, save, and download roast profile parameters.

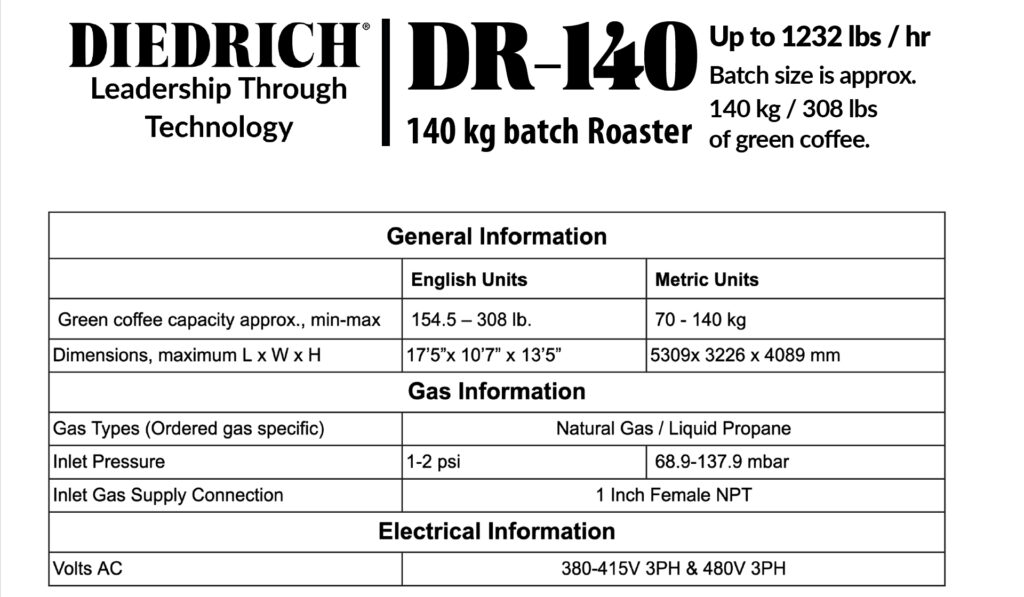

Technical Information:

    • Dimensions, Maximum:17’5”x 10’7” 1 x 13’5”; 5309x 32261x 4089 mm
    • Volts AC (3-Phase): 380-480V 3PH

Call our Chicago Sales Office
M-F 8:30am -5:00 pm Central Time
+888 444 0630

More Information

Simplified Controls

Diedrich Roasters 2nd generation roast profile automation continues to advance coffee roasting. Designed for both Specialty and Commercial series, the updated Z 2.5 automation uses industrial-grade hardware, has user-friendly interface and offers operators the ability to precisely fine-tune and control the roast.

Quality Guarantee

Diedrich guarantees the quality of the equipment and service for a period of twelve (12) months, but no later than eighteen (18) months after delivery or completion of services to the site has taken place.

Wear and tear items excluded. Diedrich will be responsible for any defects or faults that may develop or appear, arising from faulty materials, designs, programming or workmanship not in accordance with the drawings and/or code specification/function descriptions.

Maintenance Made Simple

Our friendly U.S.-based support center for assistance.

1.844.343.3742



See More Diedrich Roasters
